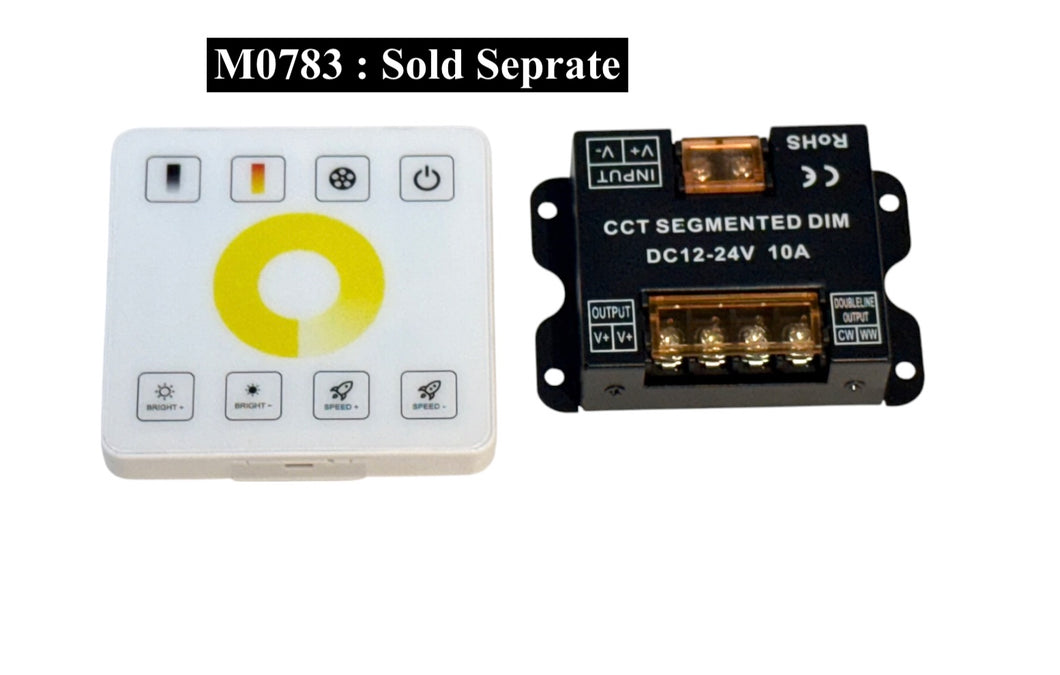

( 1 Set ) M0783 : M.T.C Canada CCT (Warm to Cool ) Colour Low Voltage Dimmer LED Touch Series Controller With Wall Touch Panel Wireless Control Input DC5-24V 10A
M0783 : M.T.C Canada CCT (Warm to Cool ) Colour Low Voltage Dimmer LED Touch Series Controller With Wall Touch Panel Wireless Control Input DC5-24V 10A
Only To Use With M.T.C Canada CCT LED Strip Light M0785
Change Colour DIM Warm to Cool
( CCT)
1 )White light / warm light / neutral light jUMP
2)Sunset (cannot adjust speed and brightness)
3)Sunrise (cannot adjust speed and brightness)
4)Warm white gradient
5)Neutral white gradient
6)Cool white gradient
7)White / warm light transition
8)Warm white jump
9)Neutral white jump
10 )Cool white jump
11) White light / warm light / neutral light jump
1. Working voltage: DC 12-24V
2. Working temperature: -20-60°
- Output current/power: 5A*2CH,, 12V<120W, 24V<240W
- Weight: 170 grams
- Product size: L85*W62*H22mm 6. Packing size: L110*W94*H42mm
- INPUT: input power positive / negative
- OUTPUT: output light with positive pole/CW/WW
- Pay special attention to DOUBLE LINE OUTPUT: the two-wire light strip can only be connected to these two interfaces
Code matching : long press the Cool white button within 5 seconds after the controller is powered on, and the light bar flashes slowly for 3 times.
Code clearing: press and hold the Warm white key within 5 seconds after the controller is powered on, and the light bar flashes quickly for 3 times.
Note : CCT Touch Controller Only To Use With M0785 M.T.C Canada CCT Strip light
